From Concept To Completion

Desk Chair Mat Packaging Machine

Click any image to see a larger version.

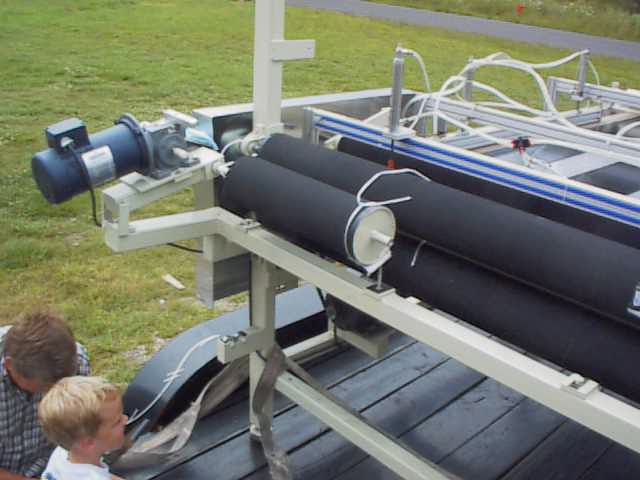

Desk Chair Mat Packaging Machine
Desk Chair Mat Packaging Machine
Desk Chair Mat Packaging Machine

Model DI-202

MFG Date: February, 2002

This machine was designed and built for E.S. Robbins Corp. in Muscle Shoals, AL. Its purpose is to build a plastic bag around desk chair mats for overseas shipment. The sizes of mats range from 32 to 48 inches wide by 32 to 120 inches long. The machine easily adjusts to accommodate different sizes. To run the machine, an operator places a desk mat and a cardboard layer on the roller conveyer. The machine automatically inserts the mat and cardboard between two layers of 6 mil plastic. As the mat starts into the machine, the leading edge is sealed, and then the sides, and then the back. The sealed desk mat is then placed on a pallet.

Machine Sale Price $35,000.00
